The Utility Arm

There is a Google SketchUp file (.skp) available for the Utility Arm. Unfortunately the Alibre 3D CAD softare I'm using can't import that file type. So I created my own version of the Utility Arm, derived from the R2BC Drawings.

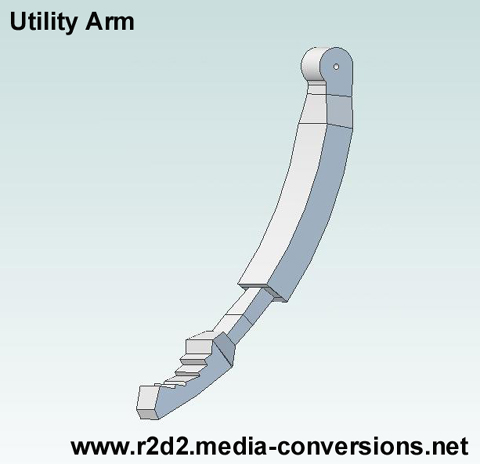

Click on the image to open a 3D .pdf version.

You can also download IGES (.igs) and STL (.stl) versions
of the file.
